Ernie’s Roundabout, Bus Layover and Drivers Facility
SectorTransport, Building, Utilities
ClientDepartment of Transport & Main Roads
LocationButterfield Street, Herston
DurationJune 2017 - October 2017
Contract Value$2.15M

With safety being at the forefront of the Department of Transport & Main Roads minds, McIlwain Civil were engaged to complete $2.1M worth of safety  upgrades to the existing bus layover facility at Herston.



1 x bus layout building on structural steel supports and suspended Bondek slab
140m Piling
1891m3 cut to spoil off site of contaminated soil

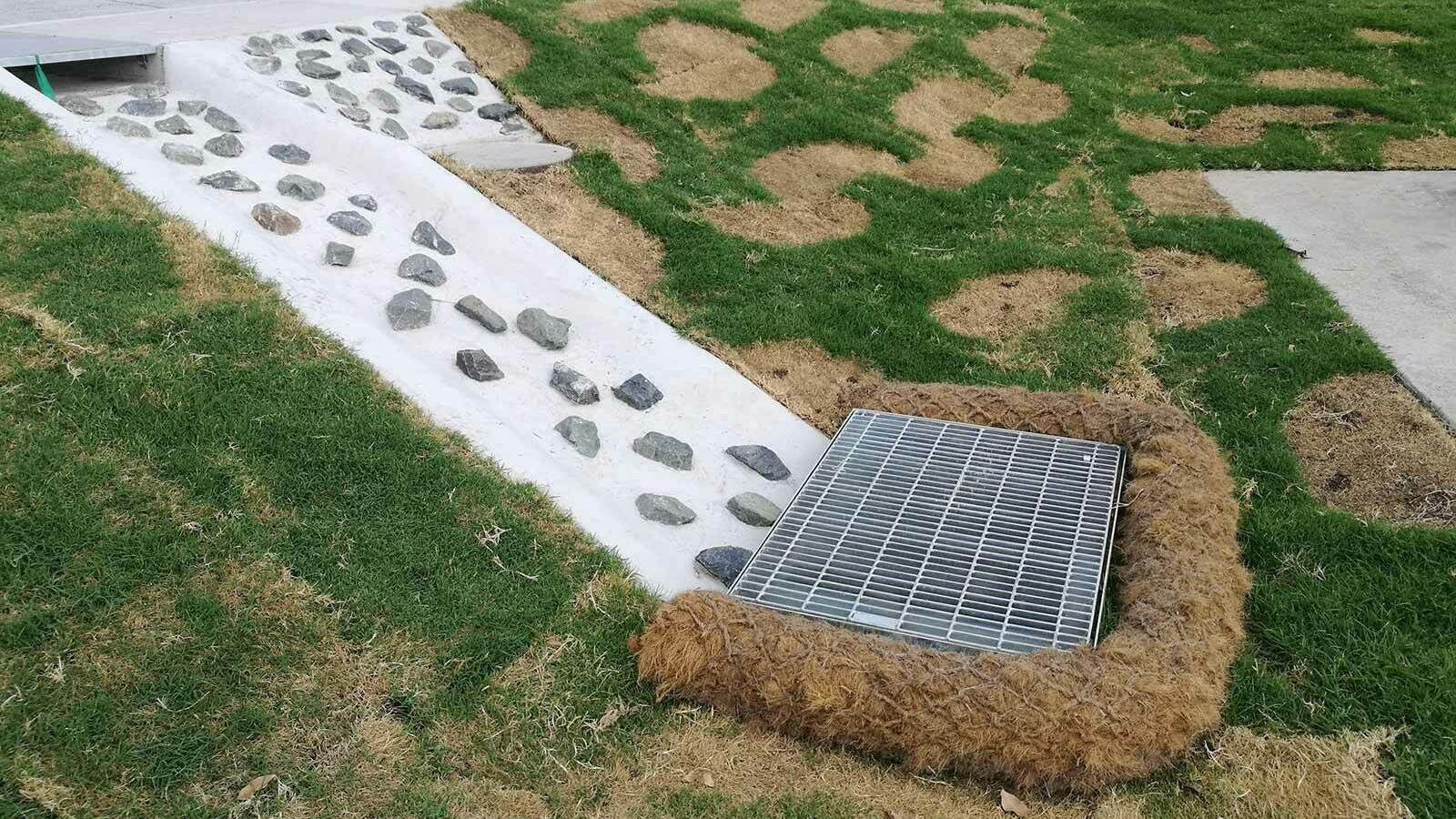

Minor stormwater lines and structures
544.3m3 Fibrecrete Pavement
1845m2 Prime & C170 Seal to pavements
277m3 Granular pavement
277m3 CTB pavement
277m3 Lean mix pavement
929m Underground Cable 192m Conduits
4 x Street Lights

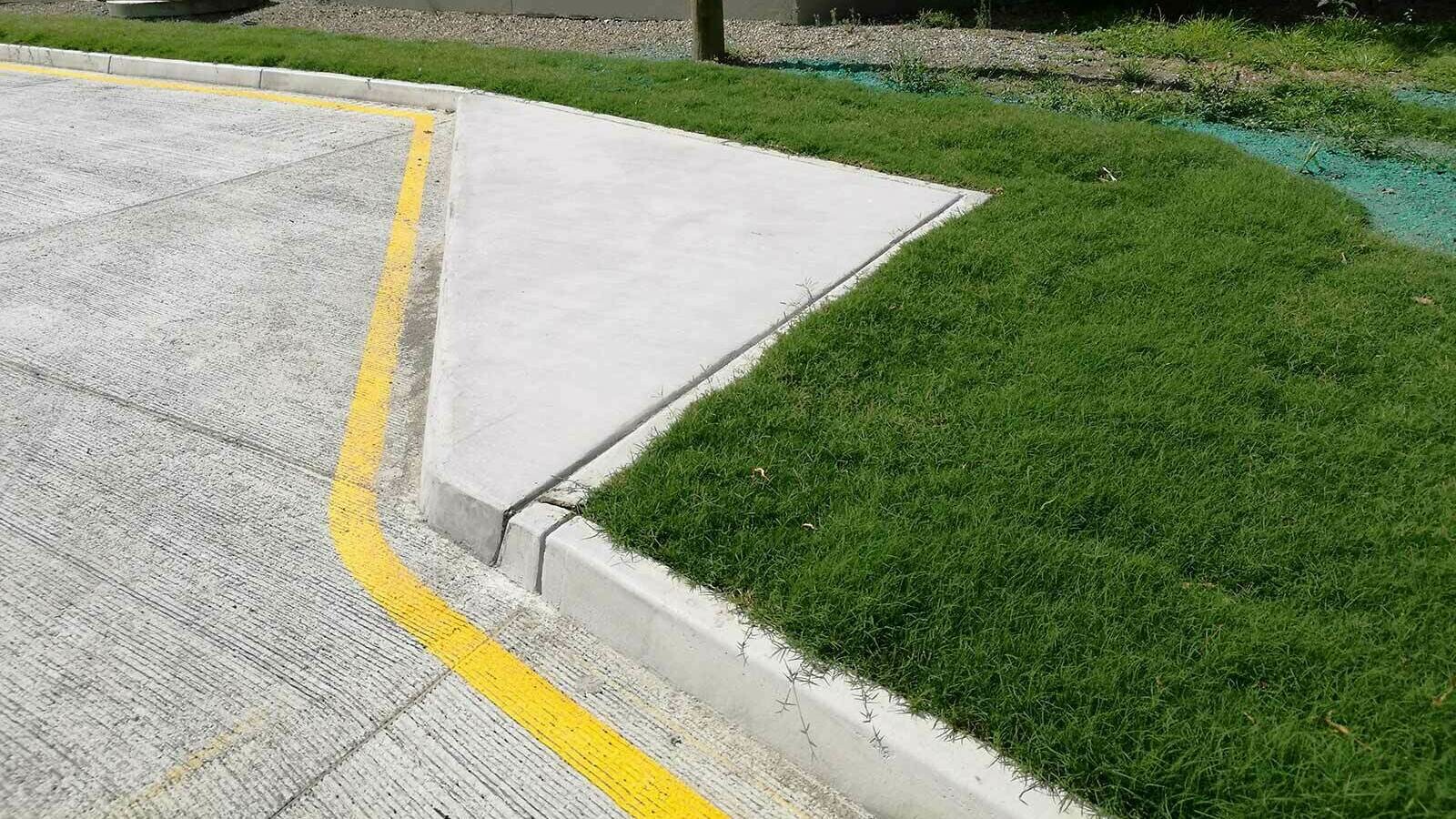

235m Kerb & Channel  243 x Plants
324m2 Turf
424m2 Topsoil
13m Fencing
1.5m Guardrail

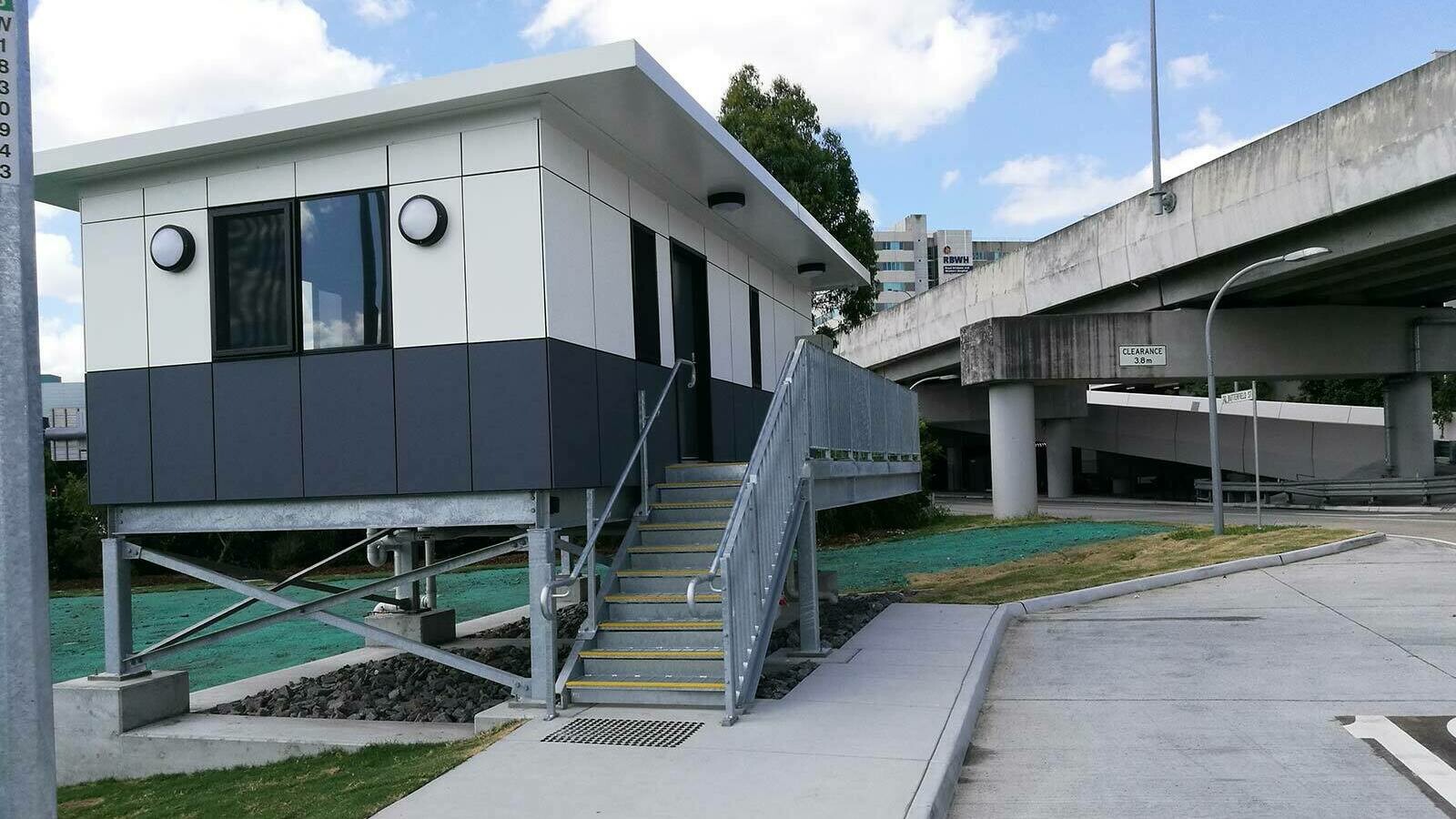

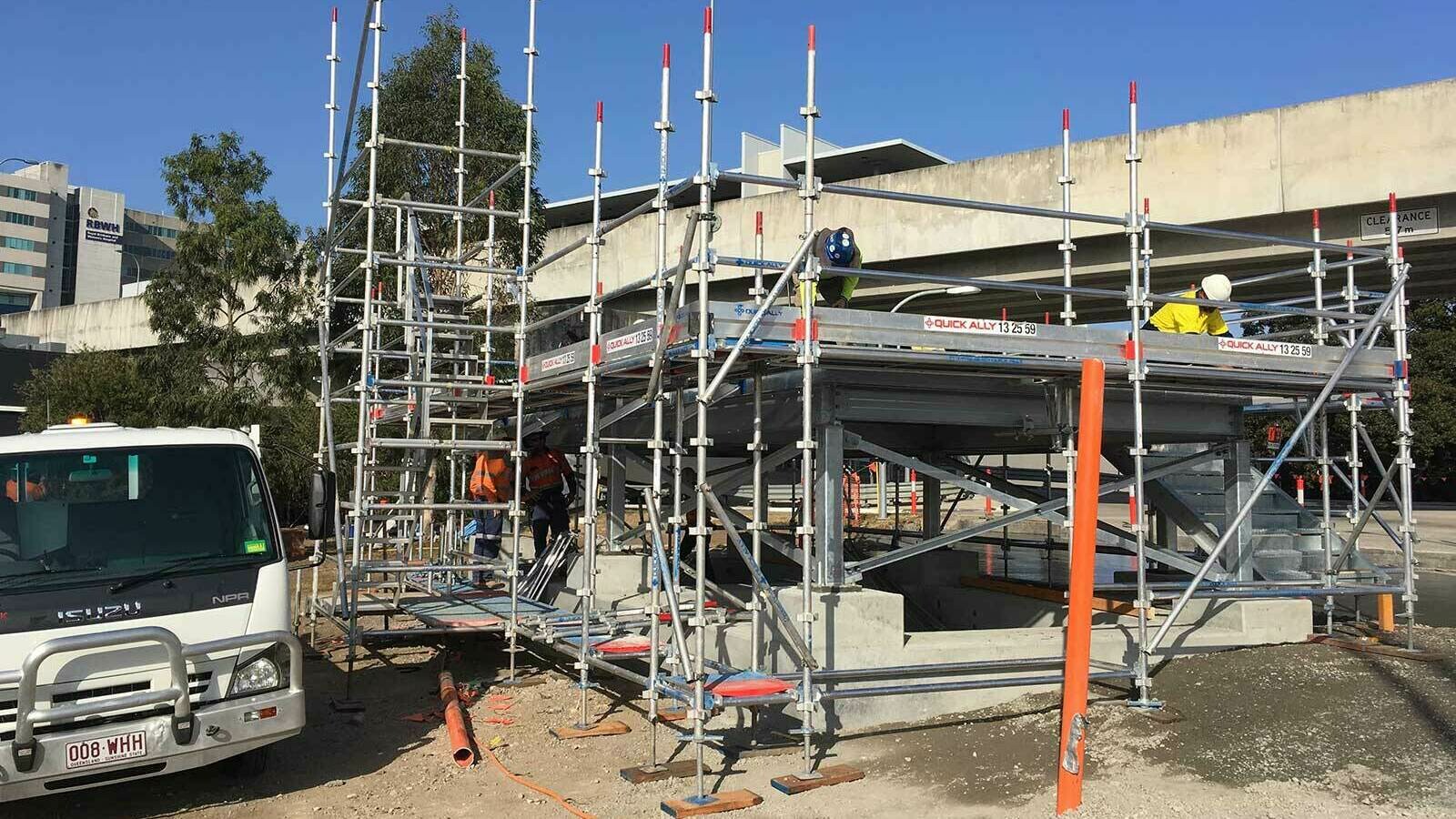

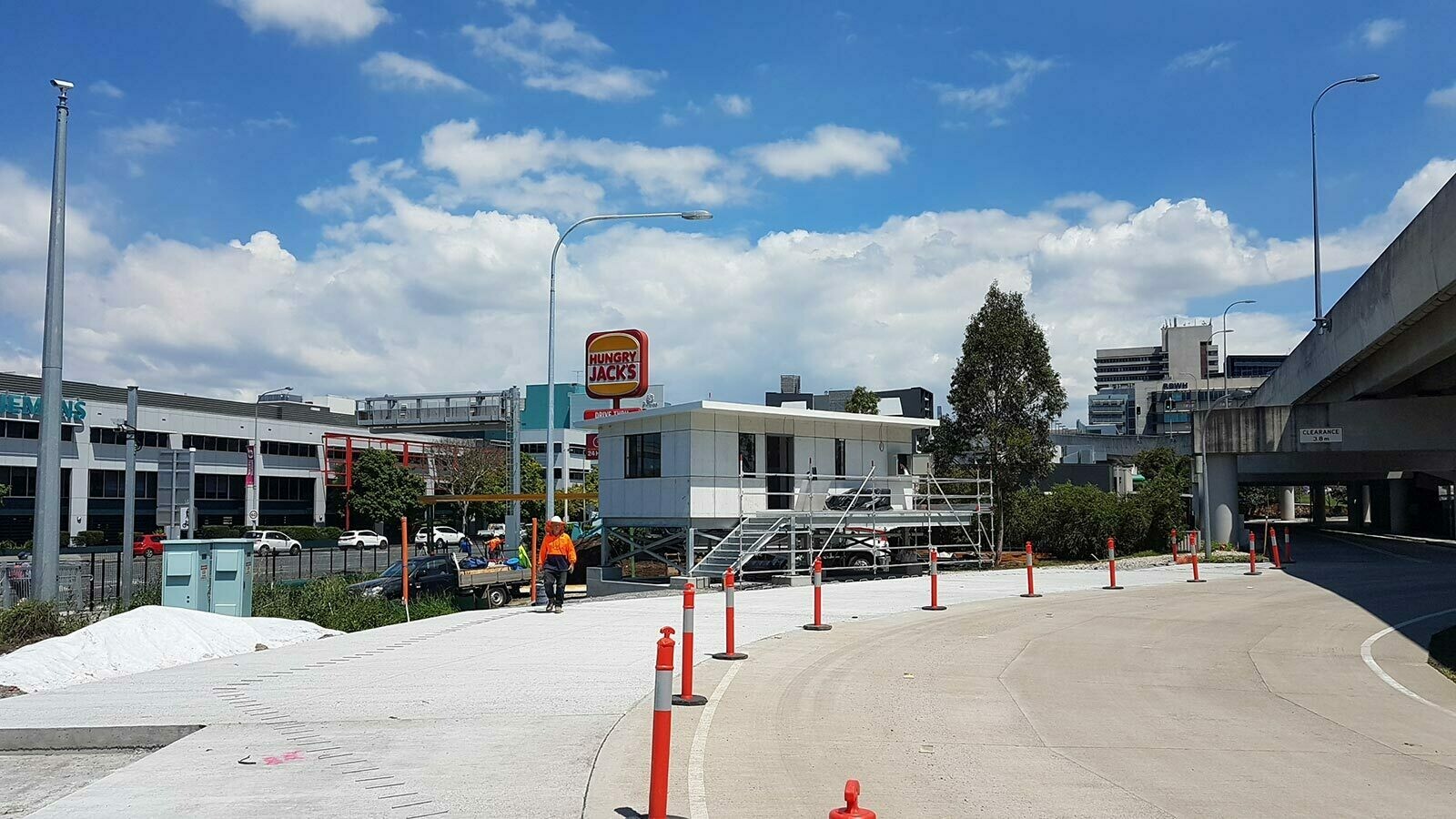

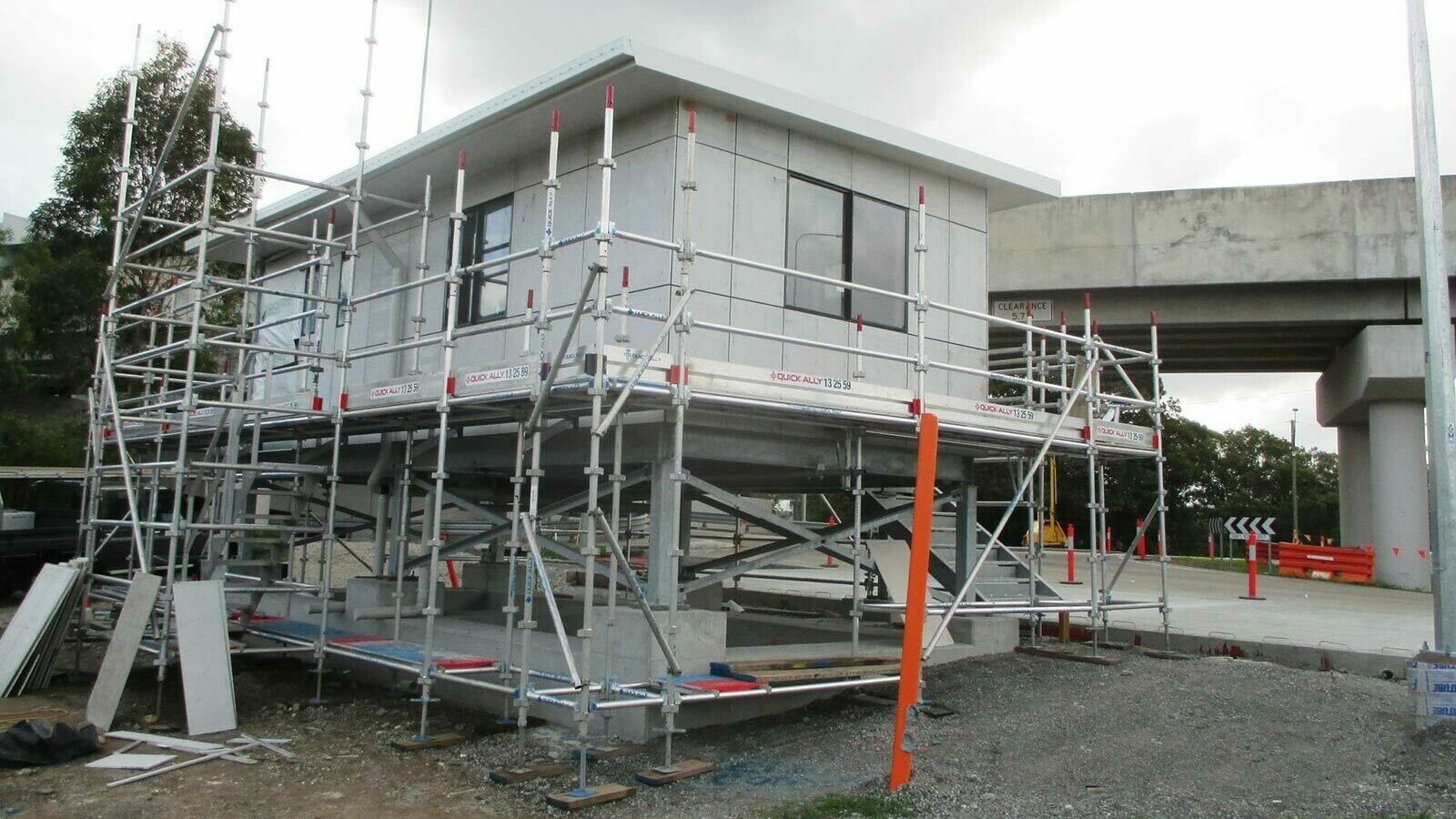

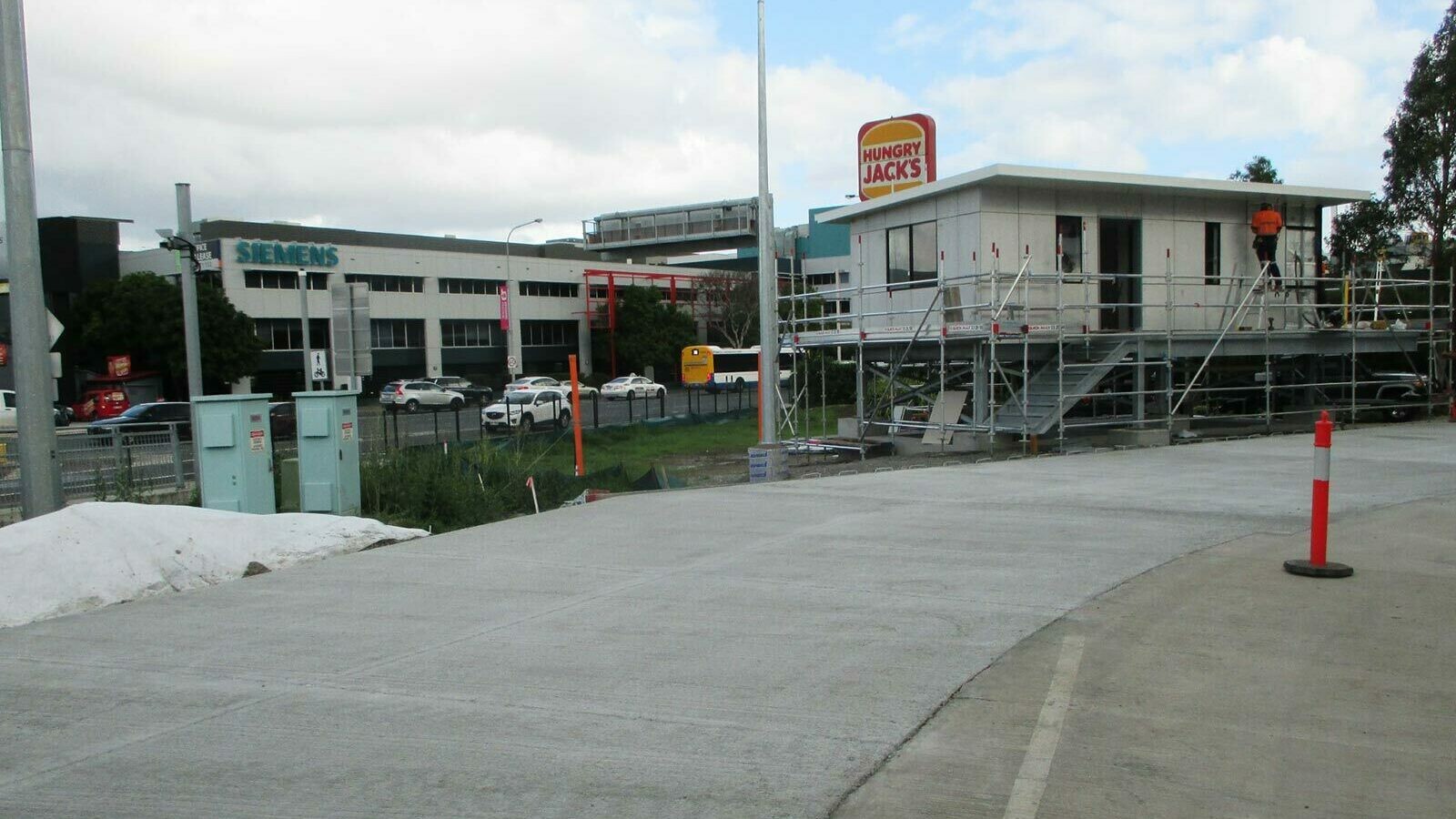

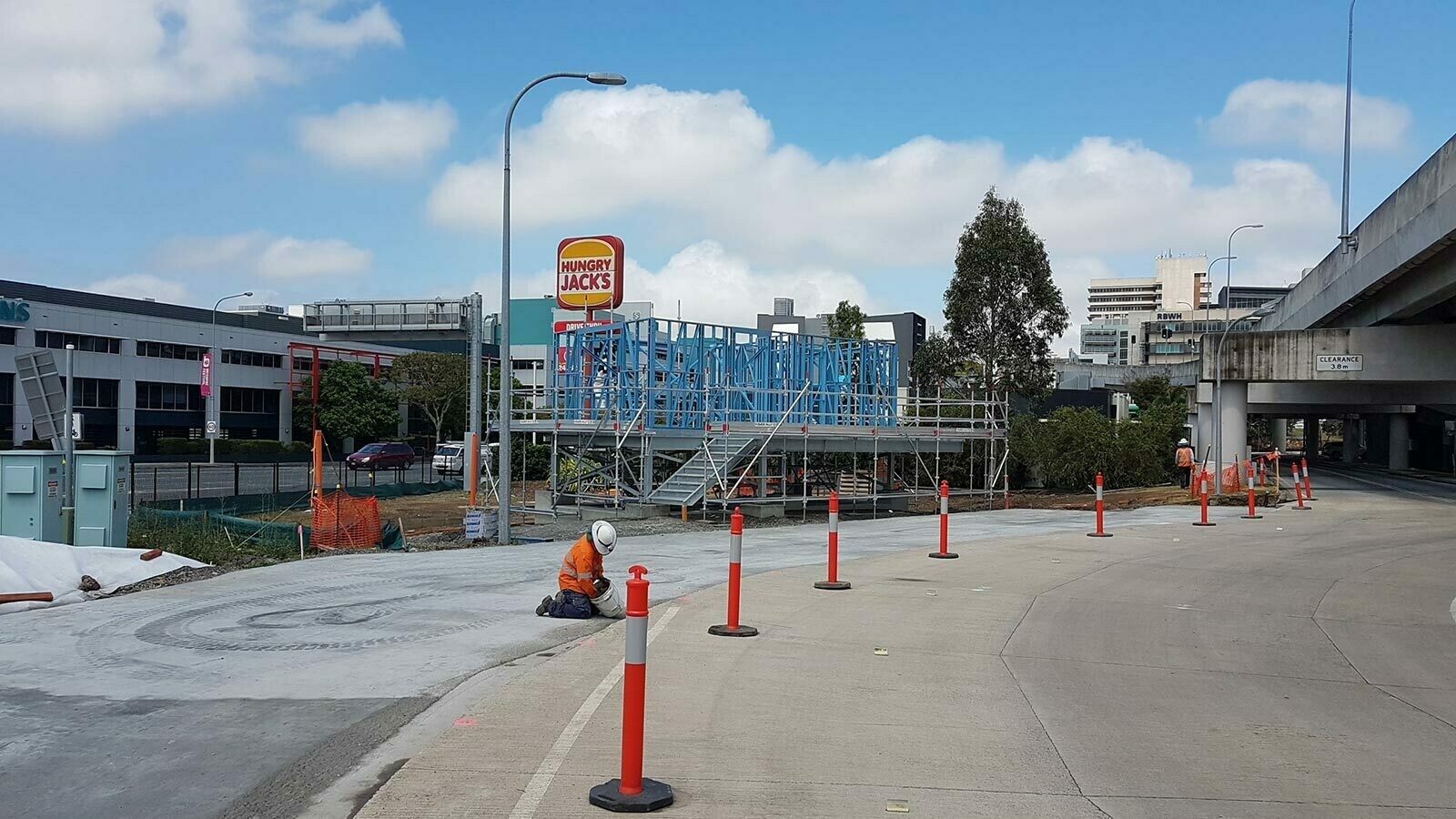

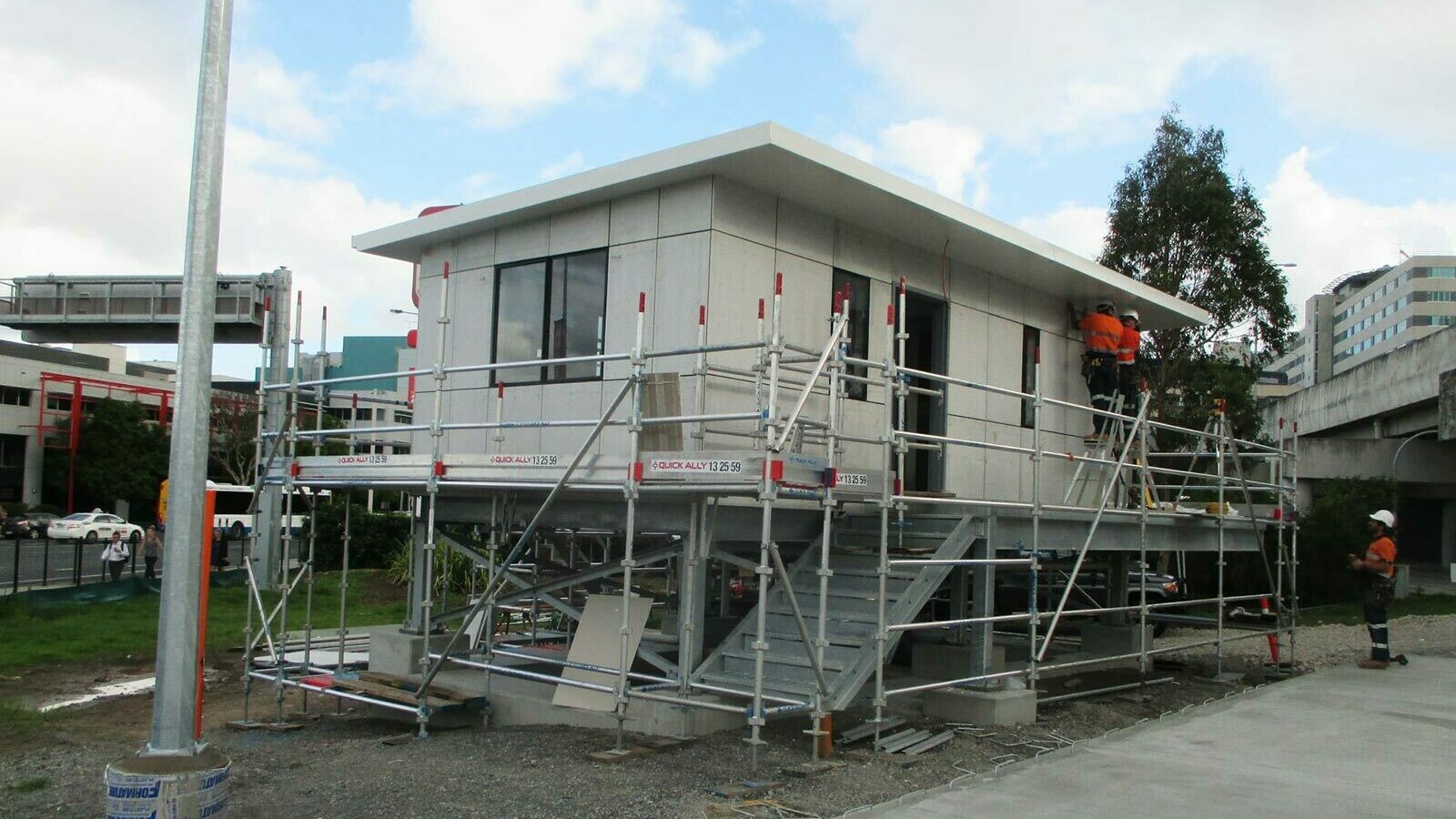

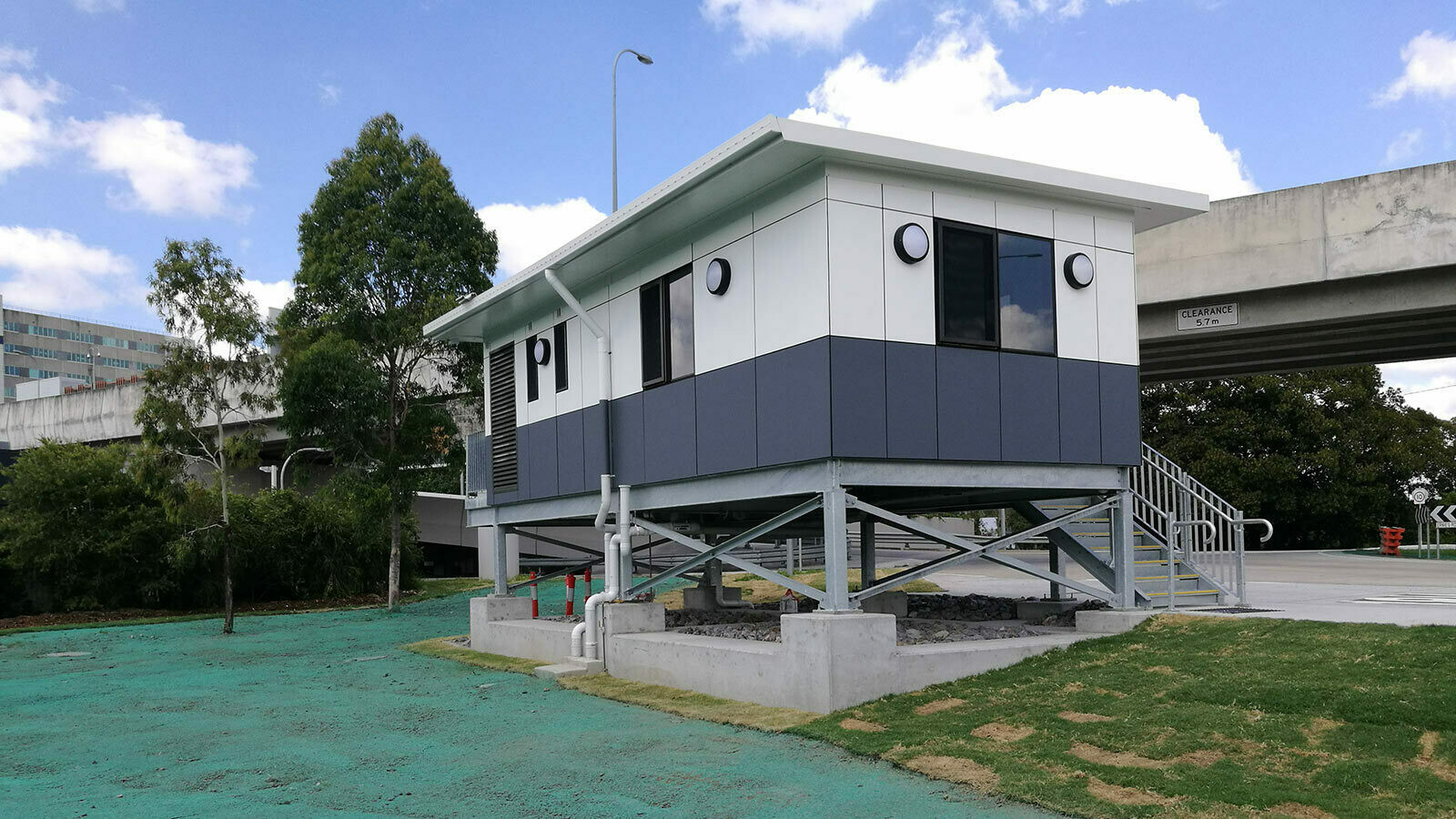

Contract works includes construction of a new drivers facility building suspended on Bondek structural slab supported on structural steel and piled foundation,  pavement construction for the bus layover area, construction of a new watermain and sewer via tunnel boring, electrical works, landscaping, signage and linemarking.
With vibration management being a key risk for the project, McIlwain developed a cost saving and innovative design alternative during the tendering period in lieu of the original precast driven pile design. The alternative design consisted of a D&C bored pier and micro pile for the pile solution. The alternative design will alleviate site access issues, vibration concerns and reduced traffic management.

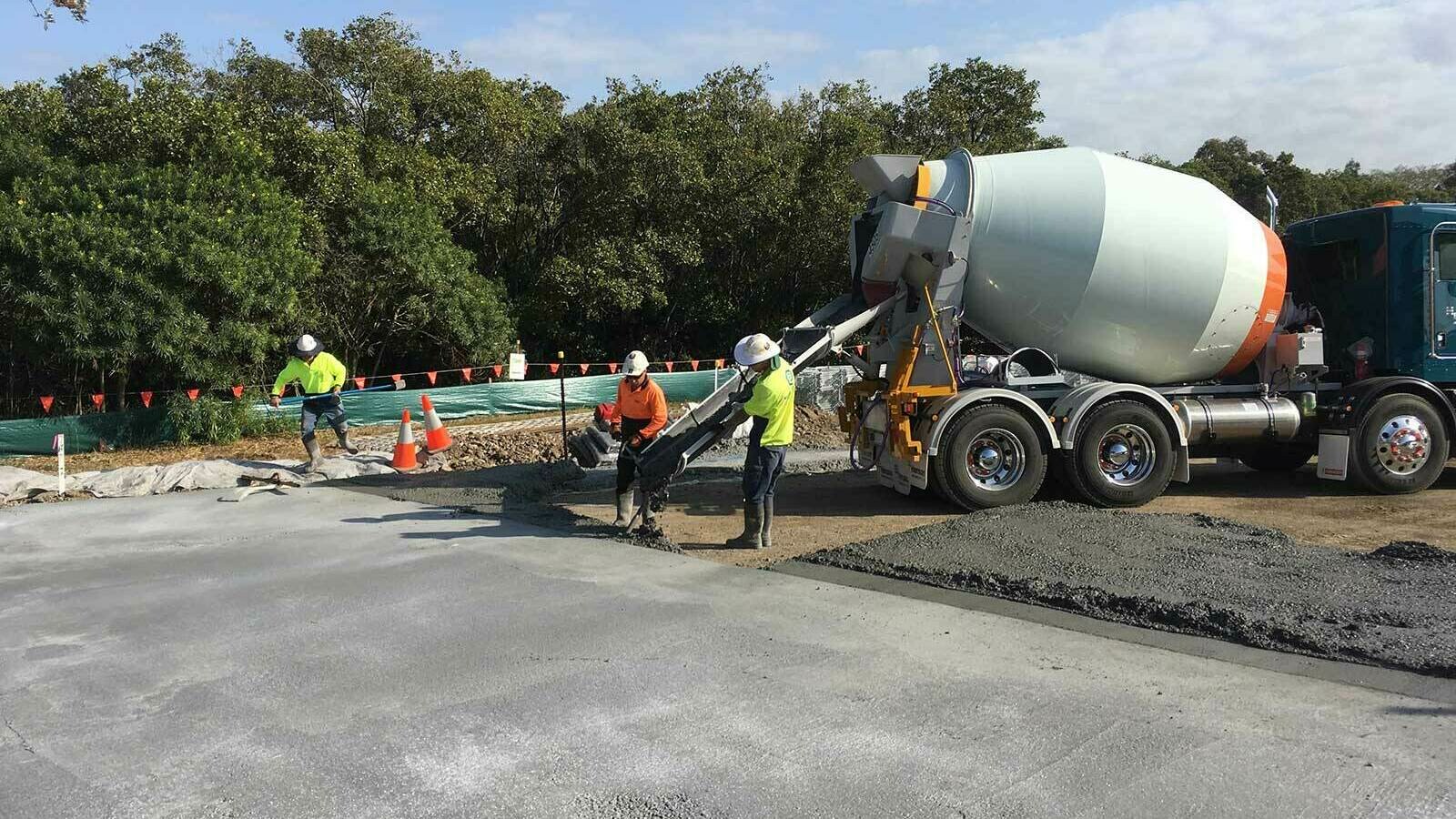

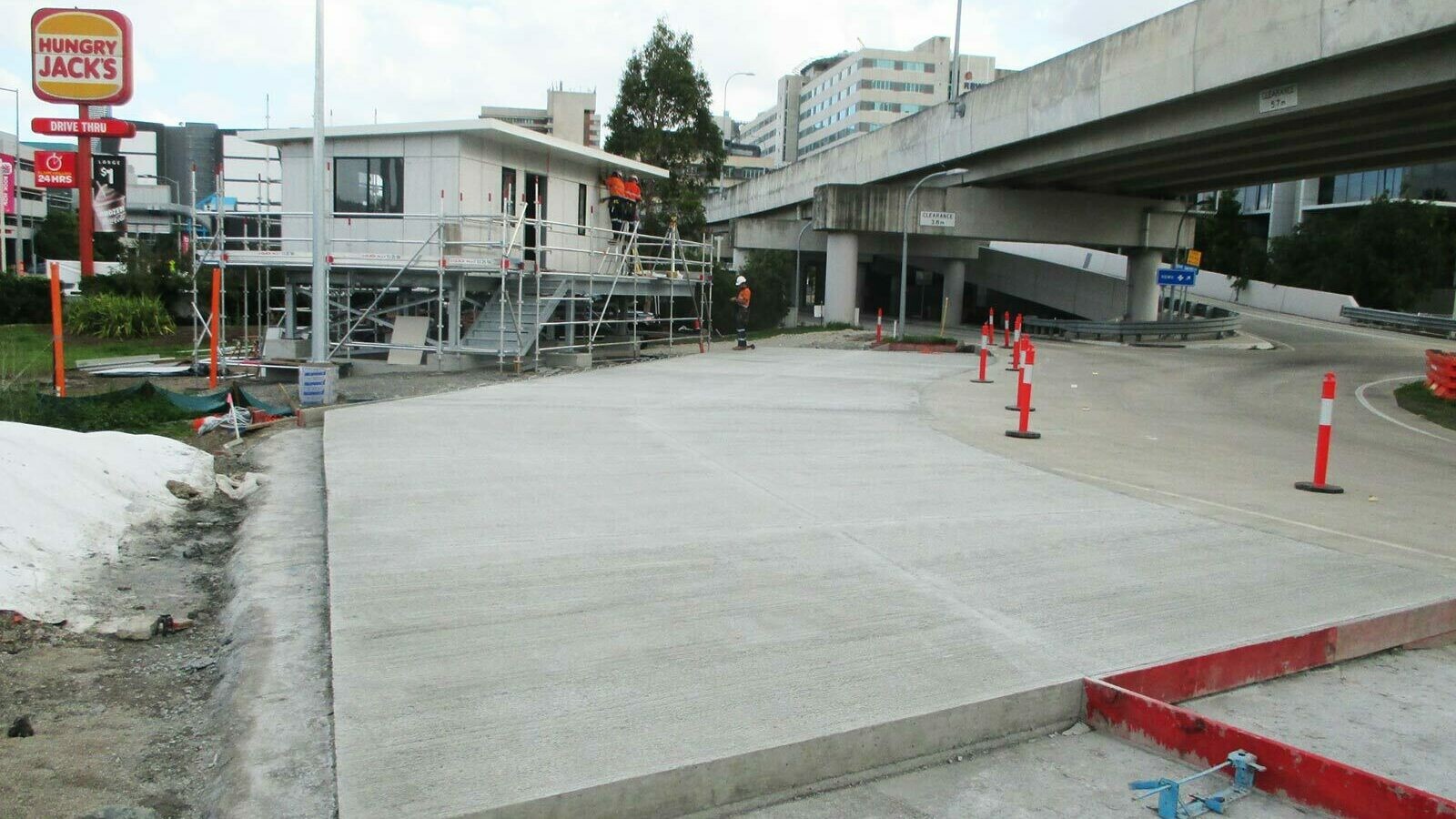

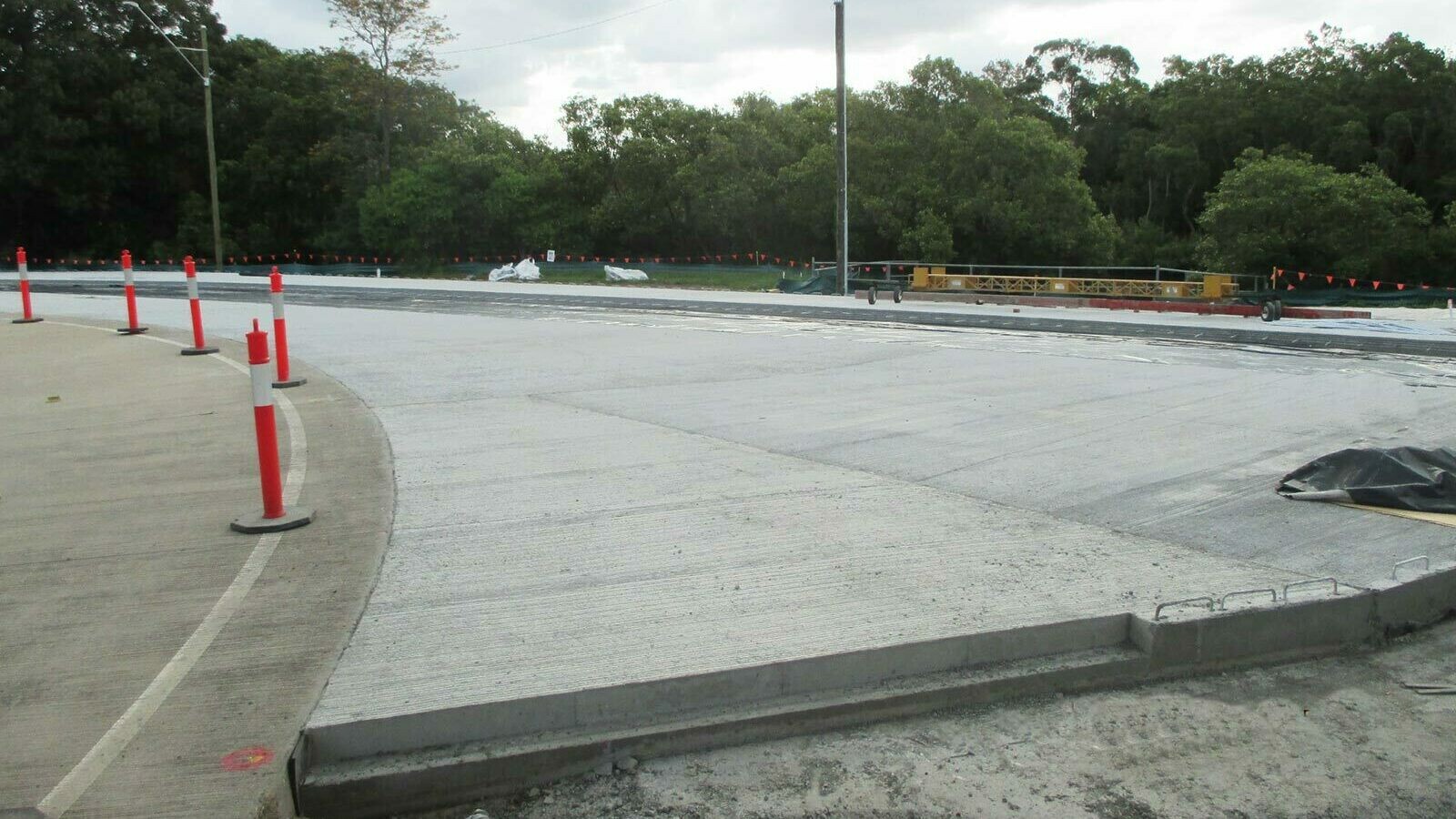

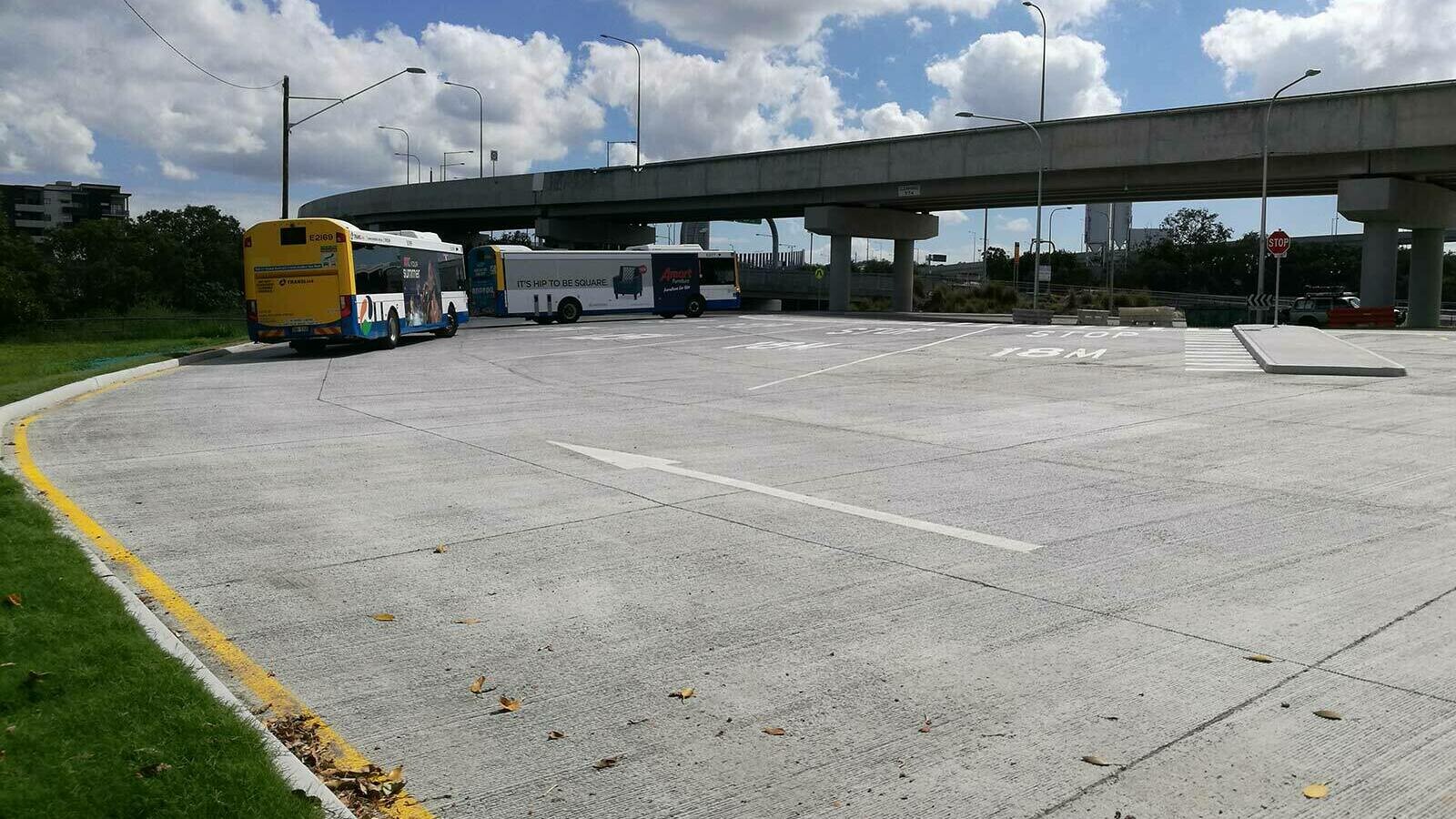

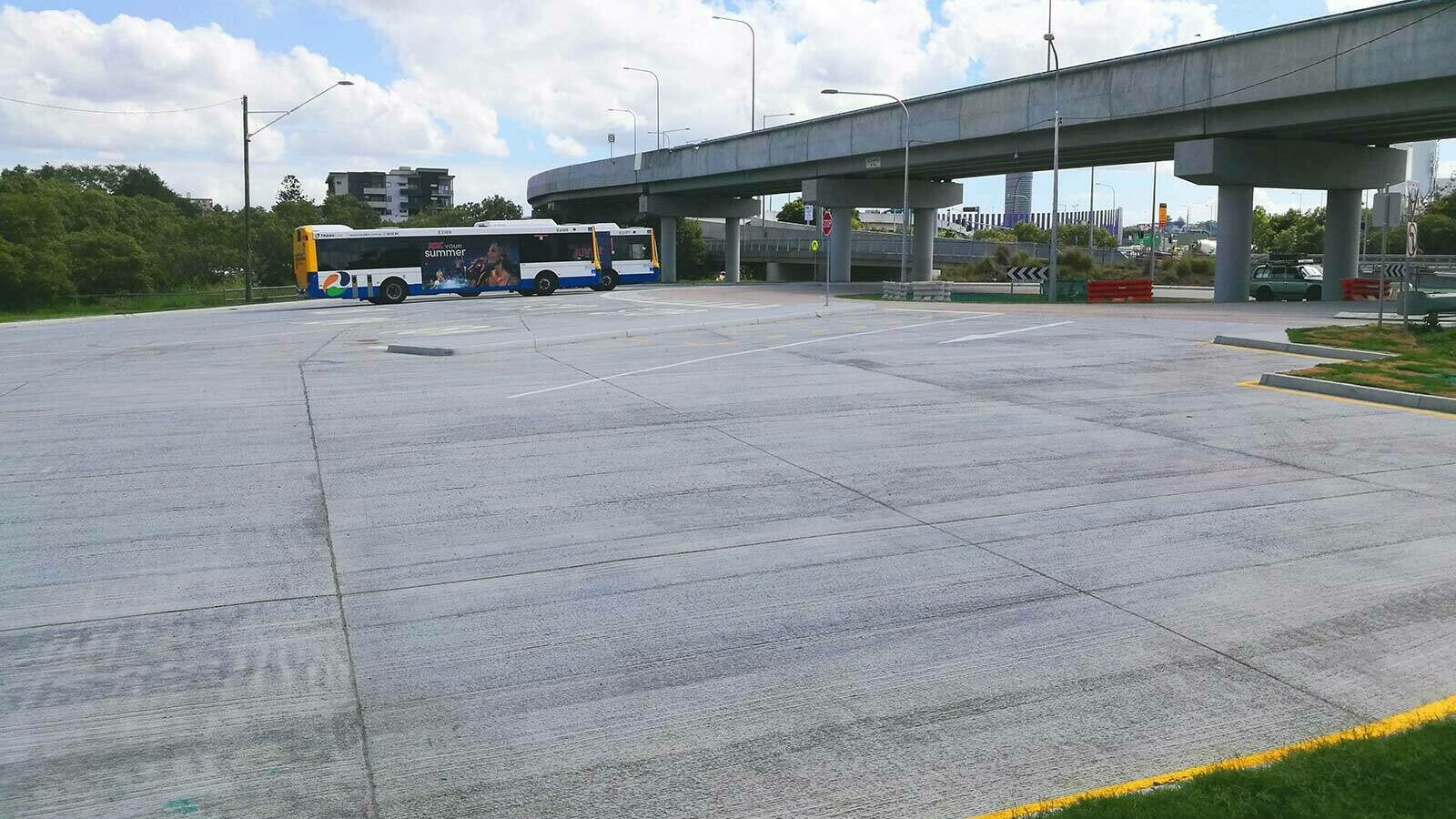

Contract works also include an external 795mm deep pavement using fibrecrete concrete with high dosage of fibres (75kg per cubic meter). The fibrecrete pavement is supported by various other pavement types such as Lean mix pavement, CTB pavement and granular pavement.

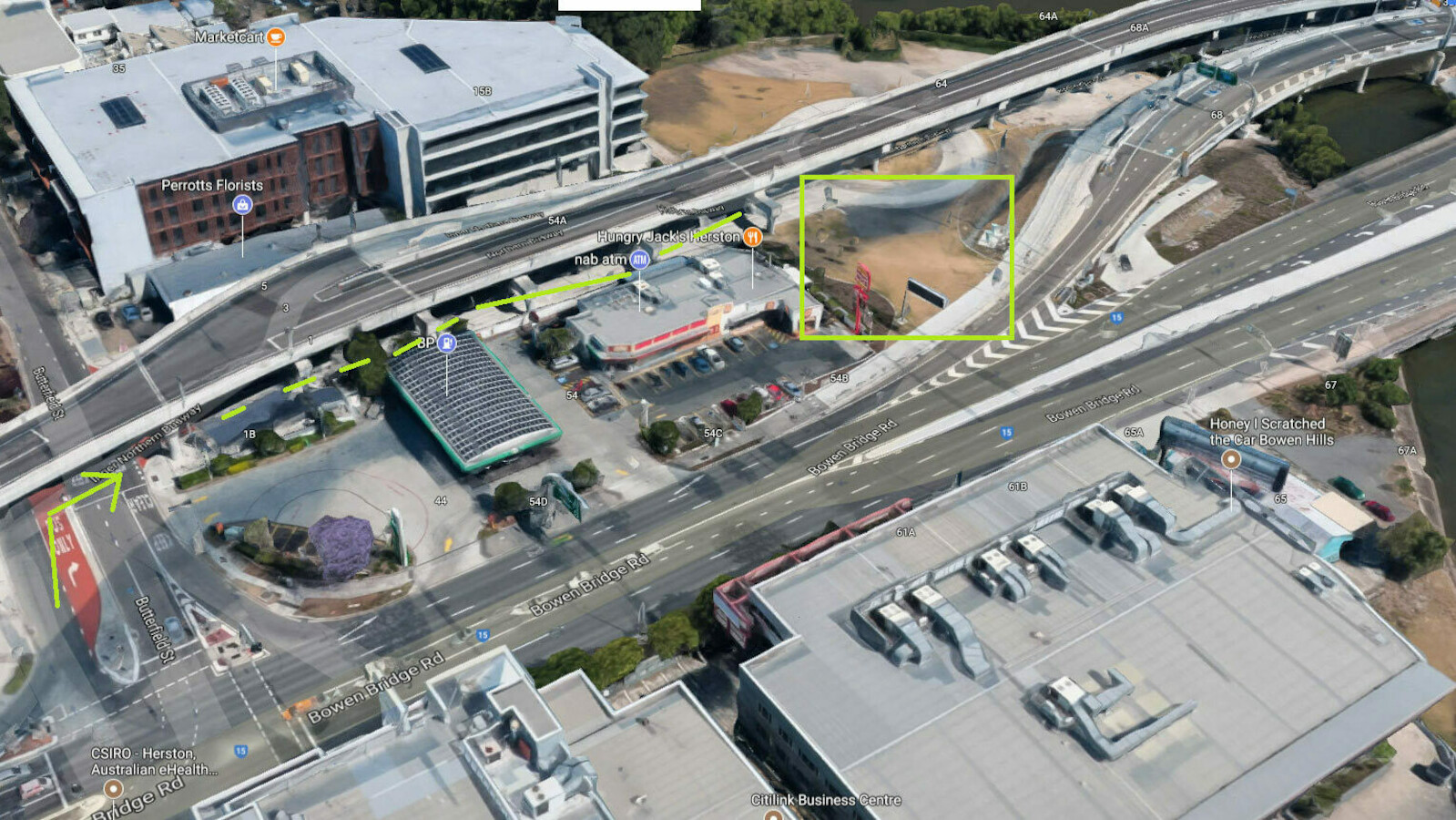

This multidisciplinary project is located within one of Brisbane’s busiest road networks. All bus movements will be maintained throughout construction to ensure the public transport network is maintained. Live connections for water and sewer will be carried out at night due to works being situated within live traffic lanes on the busy Bowen Bridge Road corridor.

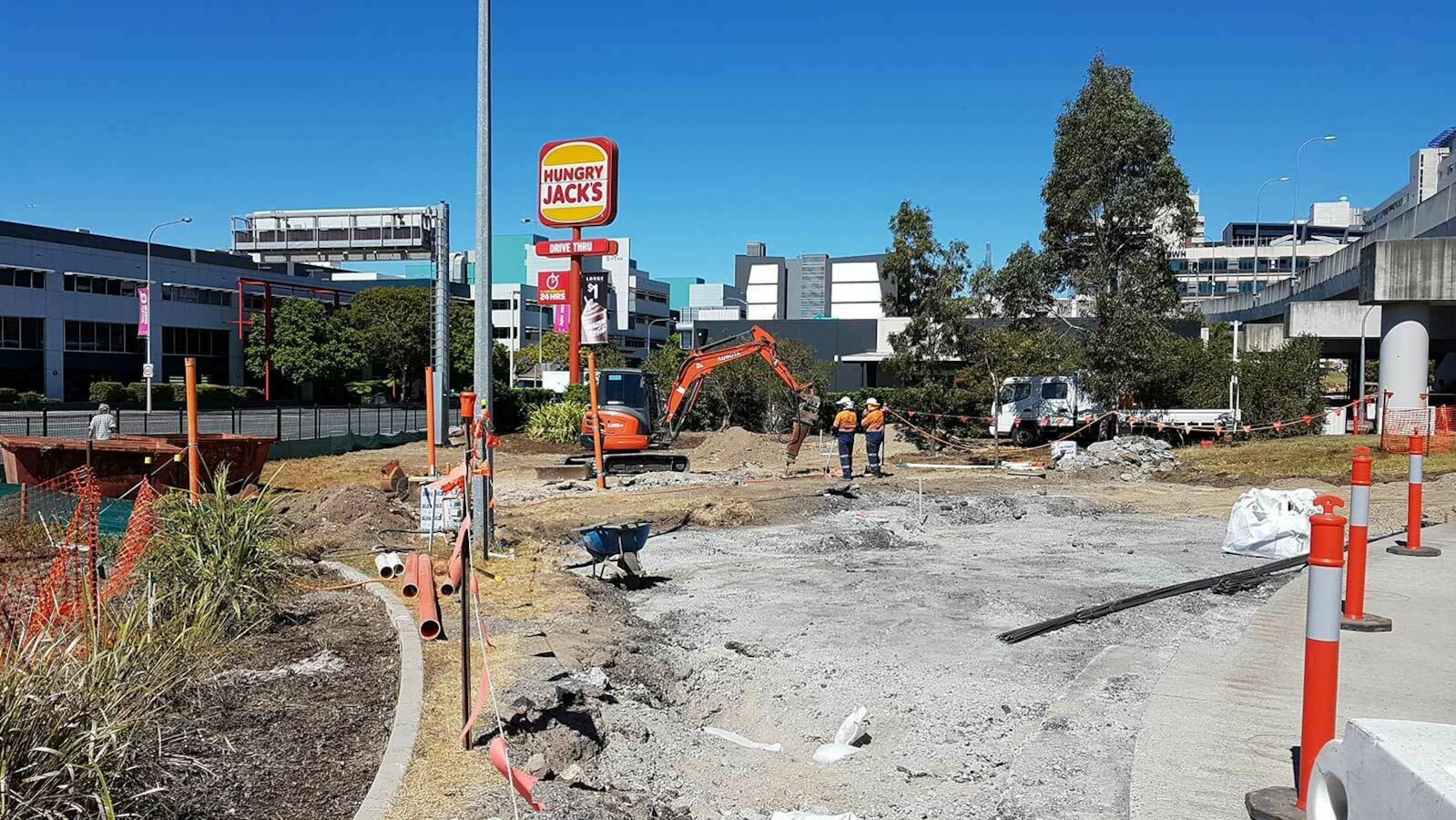

The site is listed on the environmental management register as the soil contains high levels of lead and asbestos which requires advanced coordination during disposal stages. Additionally works will be conducted next to the Engoggera Creek which will require significant environmental management solutions to ensure water quality and the adjacent mangroves are protected.
